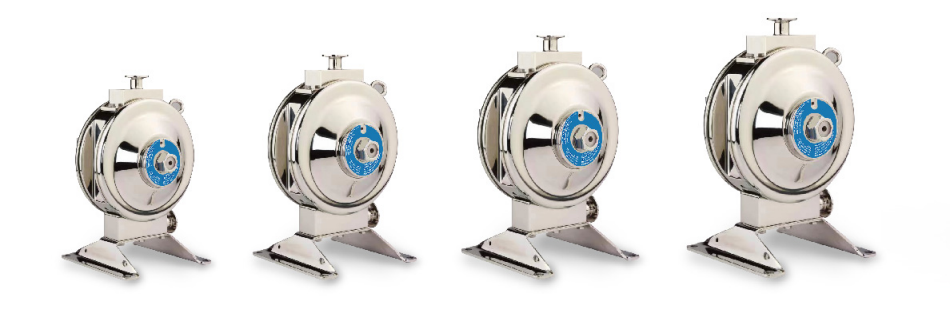

FDA Pump

Quick info

Quote Now
  • Description
  • Additional Information
  • Dowmload

Model GH20 GH40 GH50 GH80
Material 316L 316L 316L 316L
Max.Flow Rate Rubber diaphragm:121LPM

TP diaphragm:134LPM

Teflon PTFE diaphragm:127LPM

 Rubber diaphragm:244LPM

TP diaphragm:251LPM

Teflon PTFE diaphragm:247LPM

 Rubber diaphragm:312LPM

TP diaphragm:334LPM

Teflon PTFE diaphragm:309LPM

 Rubber diaphragm:517LPM

TP diaphragm:531LPM

Teflon PTFE diaphragm:509LPM
Suction Lif Rubber:Dry:5.2M

Wet:9M
Thermoplastic composit:Dry:7.6M

Wet:9M

Teflon PTFE:Dry:4.7M

Wet:9.1M

 Rubber:Dry:5.9M

Wet:8M

Themoplastic composit:Dry:5.2M

Wet:8.8M
Teflon PTFE:Dry:6.4M

Wet:9.3M

 Rubber:Dry:6.95M

Wet:8.6M
Thermoplastic composit:Dry:6.7M

Wet:8.6M

Teflon PTFE:Dry:6.7M

Wet:9M

 Rubber:Dry:6.6M

Wet:8.6M

Thermoplastic composit:Dry:6.3M

Wet:8.6M
Teflon PTFE:Dry:6.2M

Wet:8.6M
Parameter Liquid inlet: Liquid inlet: Liquid inlet: Liquid inlet:
25mm(1″)TRI-CLAMP   38mm(1-1/2″)TRI-CLAMP   38mm(1-1/2”)TRI-CLAMP   51mm(2″)TRI-CLAMP
Liquid discharge:   Liquid discharge:   Liquid discharge:   Liquiddischarge:
25mm(1″)TR-CLAMP   38mm(1-1/2″)TRI-CLAMP   38mm(1-1/2″)TRI-CLAMP   51mm(2″)TRI-CLAMP
Air inlet:   Air inlet:   Air inlet:   Air inlet:
13mm(1/2”)   13mm(1/2”)   19mm(3/4″)   19mm(3/4”)
Max.discharge pressure:   Max.discharge pressure:   Max.discharge pressure:   Max.discharge pressure:
7.2BAR (105 PSI)   7.2BAR (105 PSI)   7.2BAR (105 PSI)   7.2BAR (105 PSI)
Max.size solids:   Max.size solids:   Max.size solids:   Max.size solids:
6.4mm(1/4”)   6.4mm   6.4mm   9.0mm
Finishing   Finishing:   Finishing:   Finishing:
Surface Finish:Ra 5.1 μm   Surface Finish:Ra 5.1 μm   Surface Finish:Ra 5.1 μm   Surface Finish:Ra 5.1 μm
